Continuous Monorail Shot Blasting Machine Manufacturer in India

Working Principle of Continuous Monorail Shot Blasting Machine

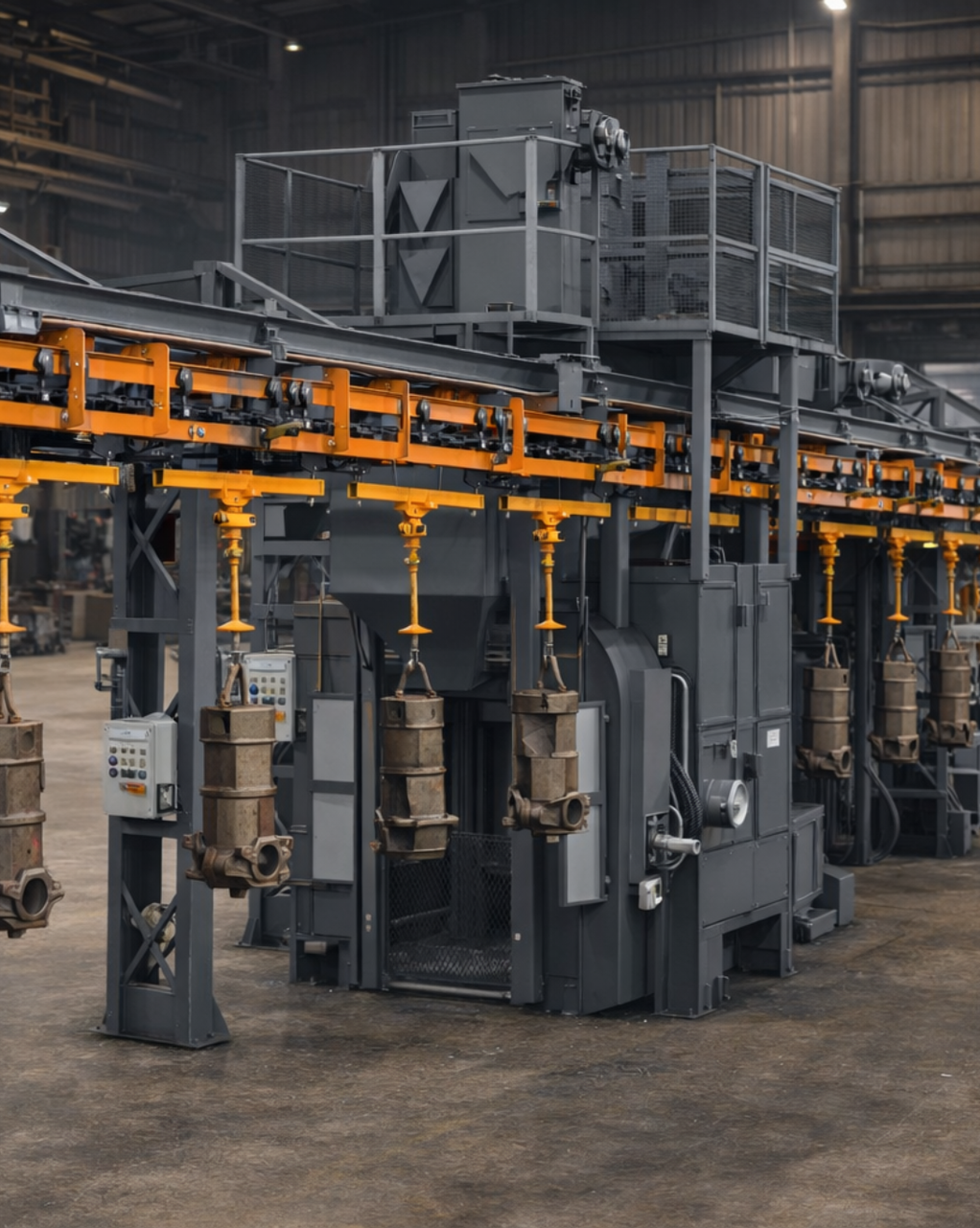

Continuous Monorail Shot Blasting Machines operate on an overhead conveyor principle where workpieces are suspended from trolley-mounted hooks that travel along a fixed overhead monorail track. Components are loaded at one end, pass continuously through the blasting chamber, and exit fully cleaned at the other end, enabling uninterrupted, high-volume inline surface preparation.

As components travel through the blast zone, high-velocity abrasive shots are projected by centrifugal blast wheels positioned at multiple angles, ensuring complete 360-degree surface coverage. The continuous rotation of the hook during transit eliminates shadow zones and delivers uniform rust removal, descaling, and surface profiling across the entire workpiece.

The spent abrasive falls to the bottom hopper, is transported by a screw conveyor and bucket elevator, cleaned through an air-wash separator to remove dust and broken media, and recycled continuously back to the blast wheels. An integrated pulse-jet dust collection system maintains a clean, safe, and regulation-compliant working environment throughout production.

Proven Engineering Performance & Industry Trust

SPT Blastech™ has established itself as a trusted manufacturer of continuous monorail shot blasting machines through precision engineering, robust fabrication, and dedicated after-sales support. Our systems are deployed across automotive manufacturing, structural steel fabrication, heavy engineering, agricultural equipment, and general metal fabrication industries.

450+

Satisfied Clients & Partners

900+

Engineered Machines Delivered

4.8+

Client Satisfaction Rating

120+

Skilled & Certified Professionals

Key Features of Continuous Monorail Shot Blasting Machine

Surface Preparation Technologies manufactures heavy-duty Continuous Monorail Shot Blasting Machines designed for high-volume inline surface cleaning of fabricated components, automotive parts, structural assemblies, and welded structures across a wide range of industries in India.

Overhead Monorail Conveyor System

Robust overhead rail with powered trolley drive enables continuous, uninterrupted flow of components through the blast chamber at adjustable conveyor speeds.

Auto-Rotating Hook Mechanism

Self-rotating hooks ensure all surfaces of suspended components receive uniform abrasive blasting coverage, eliminating unblasted shadow zones.

High-Efficiency Centrifugal Blast Wheels

Heavy-duty blast wheels with optimized shot throwing angle deliver consistent high-velocity abrasive projection for thorough rust removal and anchor profile creation.

Durable Manganese Steel Liners

Wear-resistant manganese steel cabinet liners protect the blast enclosure and significantly extend machine service life under high-throughput blasting conditions.

Continuous Abrasive Recycling

Integrated screw conveyor, bucket elevator, and air-wash separator ensure continuous abrasive recirculation, maintaining consistent media quality and reducing operational costs.

Variable Conveyor Speed Control

Adjustable trolley travel speed allows precise control of blasting exposure time, enabling consistent surface cleanliness for components of varying complexity.

Benefits Of Using Continuous Monorail Shot Blasting Machines

Continuous Monorail Shot Blasting Machines are engineered for high-volume, uninterrupted surface preparation of fabricated components, automotive parts, and structural assemblies. They deliver consistent surface cleanliness, significantly improved coating adhesion, and reduced per-component operational costs across automotive, fabrication, and heavy engineering industries.

Uninterrupted Production Flow

Eliminates batch loading downtime with continuous inline operation that integrates directly with upstream and downstream production processes.

High Throughput Capacity

Processes hundreds of components per shift with consistent surface quality and minimal operator intervention.

Uniform 360° Surface Cleaning

Auto-rotating hooks and multi-directional blast wheels ensure complete abrasive coverage, achieving Sa 2.5 cleanliness across all surfaces.

Flexible Layout Integration

Monorail track configurable in straight, U-shape, L-shape, or loop layouts to suit your existing plant floor without major modifications.

Reduced Per-Component Cost

Continuous abrasive recycling and automated operation reduce labour, media consumption, and energy cost per component.

Enhanced Coating Performance

Consistent surface anchor profile improves adhesion and corrosion resistance for paint, powder coat, and galvanizing applications.

Why Choose Our Continuous Monorail Shot Blasting Machines

Surface Preparation Technologies manufactures heavy-duty Continuous Monorail Shot Blasting Machines engineered for high-volume, uninterrupted surface preparation of fabricated components, automotive assemblies, structural steelwork, and welded parts. Our systems are designed for maximum production efficiency, consistent surface quality, and long-term operational reliability in demanding industrial environments.

Each machine integrates precision blast wheel technology, automated abrasive recovery, reinforced structural framing, and variable-speed conveyor control, ensuring energy-efficient operation and achieving surface cleanliness levels up to Sa 2.5 and beyond for critical coating and painting applications.

Continuous Inline Production Flow

Overhead monorail conveyor system enables uninterrupted load-blast-unload cycles, maximizing throughput and eliminating batch idle time in high-volume production lines.

Complete 360° Surface Coverage

Auto-rotating hook mechanism combined with multi-angle blast wheel placement ensures every surface of the component is uniformly cleaned with no shadow zones.

High-Volume Processing Capacity

Designed for large-scale industrial production, with customizable conveyor lengths, hook spacing, and blast wheel configurations to match specific production volumes.

Low Operating Cost

Continuous abrasive recycling, energy-optimized blast wheel motors, and durable wear parts combine to deliver low cost-per-component surface preparation at scale.

Types of Continuous Monorail Shot Blasting Machines

Explore the range of Continuous Monorail Shot Blasting Machines engineered for high-volume inline surface cleaning of fabricated components, automotive assemblies, structural steelwork, and welded parts. Each variant is designed for specific production layouts, component sizes, and throughput requirements.

Close Loop Conveyor Type Machine

Closed-loop overhead conveyor system where components travel in a continuous circuit through the blast chamber, enabling non-stop high-volume surface preparation with multiple loading and unloading stations on a single loop track.

Close Loop Continuous Conveyor Shot Blasting Machine

High-throughput continuous conveyor blasting system with a closed-loop monorail circuit, designed for seamless inline integration with painting booths, powder coating lines, and other downstream finishing processes in high-volume production environments.
