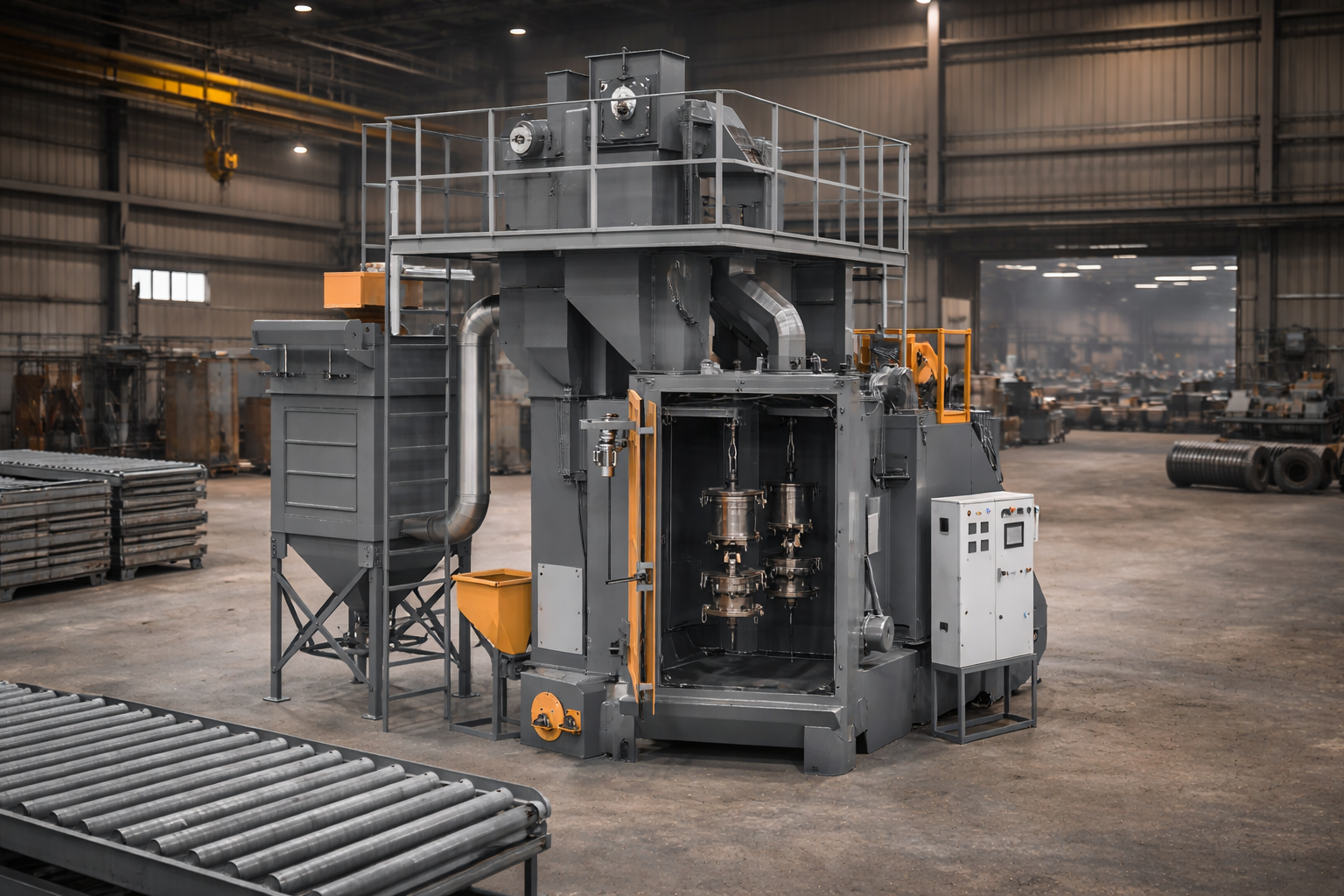

Door Hook Type Shot Blasting Machine Manufacturer in India

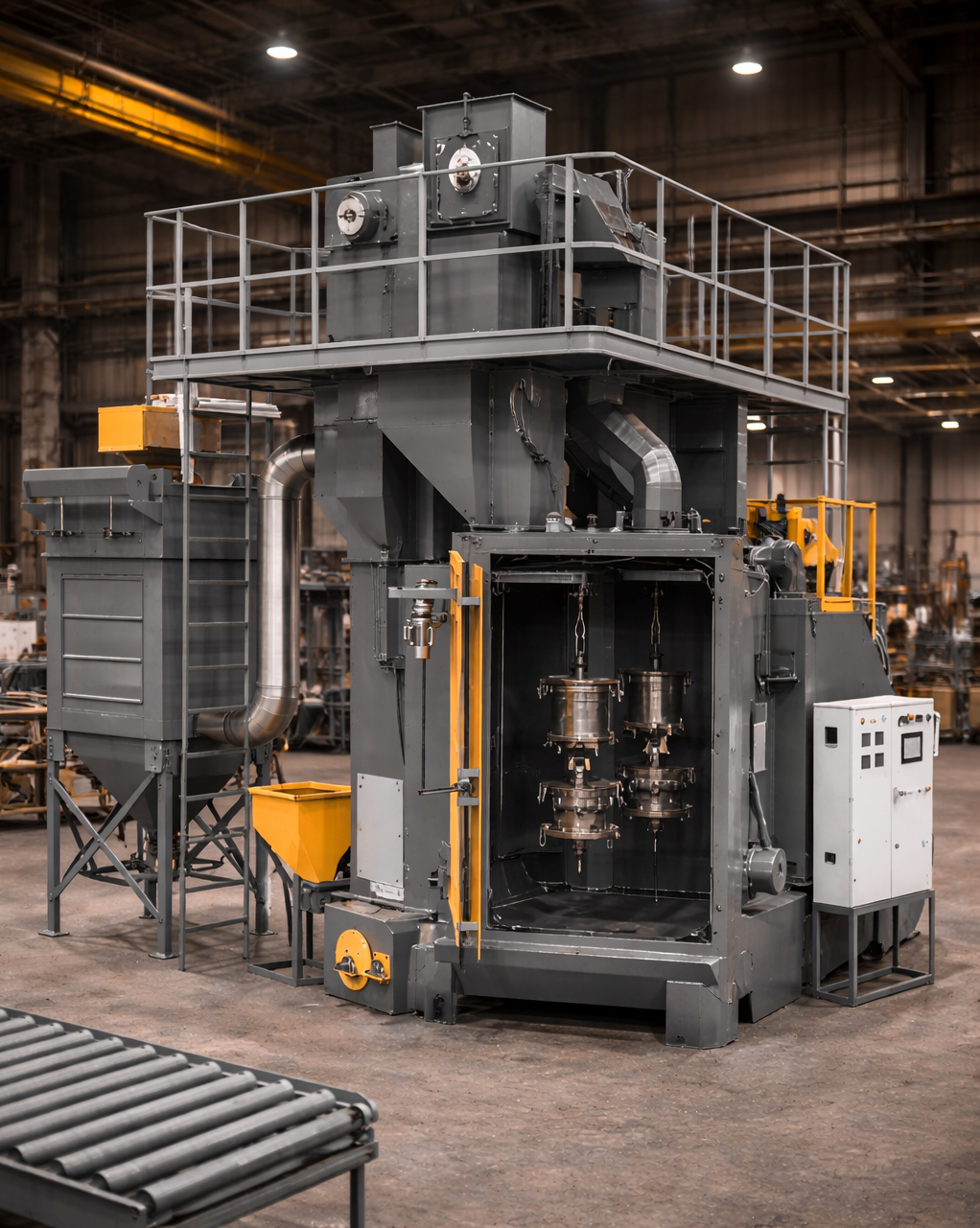

Working Principle of Door Hook Type Shot Blasting Machine

Door Hook Type Shot Blasting Machines operate on a batch-type overhead hook principle where components are suspended from rotating hooks mounted on a carrier beam. The door-mounted hook system allows easy loading and unloading of workpieces directly from the front, enabling operator-friendly batch processing.

As the hooks rotate, high-velocity abrasive shots are projected by centrifugal blast wheels from multiple directions, ensuring 360-degree uniform surface cleaning — removing rust, mill scale, welding slag, and surface contaminants while creating a consistent anchor profile for superior coating adhesion.

The spent abrasive is collected at the bottom hopper, elevated via a bucket elevator, cleaned through an air-wash separator to remove dust and debris, and continuously recycled back to the blast wheels. A dedicated pulse-jet dust collection system maintains a safe, compliant working environment throughout the blasting cycle.

Proven Engineering Performance & Industry Trust

Surface Preparation Technologies has established itself as a trusted manufacturer of door hook type shot blasting machines through precision engineering, heavy-duty fabrication, and dedicated after-sales support. Our machines operate across structural steel fabrication, automotive component manufacturing, heavy engineering, and general metal fabrication industries.

450+

Satisfied Clients & Partners

900+

Engineered Machines Delivered

4.8+

Client Satisfaction Rating

120+

Skilled & Certified Professionals

Key Features of Door Hook Type Shot Blasting Machine

Surface Preparation Technologies manufactures heavy-duty Door Hook Type Shot Blasting Machines designed for batch surface cleaning of fabricated structures, welded assemblies, castings, and automotive components across a wide range of industries in India.

Front Door Loading System

Wide front-access door design enables convenient loading and unloading of large or irregularly shaped workpieces with minimal handling effort.

360° Rotating Hook Mechanism

Power-driven rotating hooks ensure all surfaces of suspended components receive uniform abrasive blasting coverage.

High-Efficiency Blast Wheels

Heavy-duty centrifugal blast wheels deliver consistent high-velocity abrasive projection for thorough rust removal and surface profiling.

Durable Manganese Steel Liners

Wear-resistant manganese liners protect the blasting cabinet and extend the overall machine service life under intensive blasting conditions.

Integrated Dust Collection

High-performance pulse-jet bag filter dust collectors ensure a clean, safe working environment and compliance with industrial air quality standards.

Customizable Hook & Load Capacity

Available in multiple hook configurations and load capacities to suit diverse component sizes and production throughput requirements.

Why Choose Our Door Hook Type Shot Blasting Machines

Surface Preparation Technologies manufactures heavy-duty Door Hook Type Shot Blasting Machines engineered for efficient batch surface preparation of fabricated structures, welded assemblies, automotive parts, and medium-to-large industrial components. Our systems deliver operational reliability, uniform surface profiling, and long-term performance under demanding production conditions.

Each machine is built with precision blast wheel technology, optimized abrasive recovery, robust structural framing, and operator-safe loading systems — ensuring energy-efficient operation and consistently high surface cleanliness standards (Sa 2.5 and above).

Operator-Friendly Front Door Access

Wide front-access door with powered or manual operation enables safe, fast loading and unloading — minimizing cycle time and operator fatigue.

Uniform 360° Surface Coverage

Rotating hook mechanism combined with strategically positioned blast wheels ensures complete surface cleaning with no shadow zones.

Heavy-Duty & Long Service Life

Reinforced manganese steel liners, wear-resistant blast wheels, and heavy structural frames ensure durability in high-throughput production environments.

Efficient Abrasive Recovery System

Integrated separator and elevator systems minimize abrasive loss, reduce operational cost, and maintain consistent blasting media quality.

Technical Specifications of Door Hook Type Shot Blasting Machines

Our Door Hook Type models (AHB Series) are available in multiple configurations to accommodate varying component sizes, hook loads, and production capacities.

Particulars	AHB 4" x 4" x 6"	AHB 5" x 5" x 8"	AHB 6" x 6" x 10"
Cabinet Size — W x D x H (mm)	1000 x 1000 x 1500	1250 x 1250 x 2000	1500 x 1500 x 2500
Hook Load Capacity (Max Weight)	200 kg	500 kg	1000 kg
No. of Blast Wheels	2	2	2–4
Size of Blast Wheel (Dia x Width)	12½" x 2½"	15½" x 2½"	19½" x 3"
Power of Each Blast Wheel	7.5 HP	15 HP	20–25 HP
Hook Rotation Speed (RPM)	3–6 RPM	3–6 RPM	2–5 RPM
Type of Dust Collector	Pulse Jet Pleated Bag	Pulse Jet Fabric Bag	Pulse Jet Fabric Bag
Total Power Consumption	22 HP	40 HP	65 HP
Height of Machine (Approx.)	4500 mm	5800 mm	7000 mm
Requirement of Pit	No	No	No

Note: We also customize the design & manufacture the machine as per customer-specific component dimensions, hook configurations, and production requirements.

Benefits Of Using Door Hook Type Shot Blasting Machines

Door Hook Type Shot Blasting Machines are engineered for efficient batch surface preparation of medium to large fabricated components, welded structures, and automotive parts. They deliver consistent surface cleanliness, improved coating adhesion, and reduced operational costs across fabrication, automotive, and heavy engineering industries.

Easy Front-Loading Access

Wide front door design enables fast, ergonomic loading and unloading of large workpieces, improving batch turnaround time and operator safety.

360° Uniform Surface Cleaning

Rotating hook mechanism ensures complete abrasive coverage on all surfaces, eliminating unblasted zones and achieving consistent Sa 2.5 cleanliness.

Handles Large & Complex Components

Ideal for cleaning fabricated structures, weldments, automotive frames, and bulky castings that cannot be processed in tumblast or conveyor systems.

Optimized Abrasive Recycling

Integrated abrasive recovery, elevator, and air-wash separator system minimizes media waste and reduces overall blasting cost per component.

Reduced Maintenance Downtime

Designed for easy access to blast wheels, liners, and wear parts, enabling quick replacement and minimal unplanned machine stoppages.

Improved Coating & Paint Adhesion

Achieves a well-defined surface anchor profile that significantly enhances the performance and longevity of paints, coatings, and galvanizing applications.

Types of Door Hook Type Shot Blasting Machines

Explore the range of Door Hook Type Shot Blasting Machines designed for batch surface cleaning of fabricated steel structures, automotive components, castings, and welded assemblies. Each variant is engineered for uniform surface preparation, reliable abrasive recycling, and long-term industrial performance.

Single Hook Shot Blasting Machine

Compact batch blasting system with a single rotating hook, ideal for small-to-medium components requiring thorough rust removal and surface preparation before painting or coating.

Double Hook Shot Blasting Machine

High-productivity dual-hook system enabling continuous load-blast-unload cycles, minimizing idle time and maximizing throughput in high-volume production environments.

Heavy-Duty Hook Shot Blasting Machine

Engineered for large, heavy fabricated structures and weldments, with reinforced hook systems and high-capacity blast wheels for demanding industrial surface preparation.

Overhead Monorail Hook Shot Blasting Machine

Integrated overhead monorail conveyor system for continuous flow production, allowing sequential loading, blasting, and unloading without manual repositioning.
